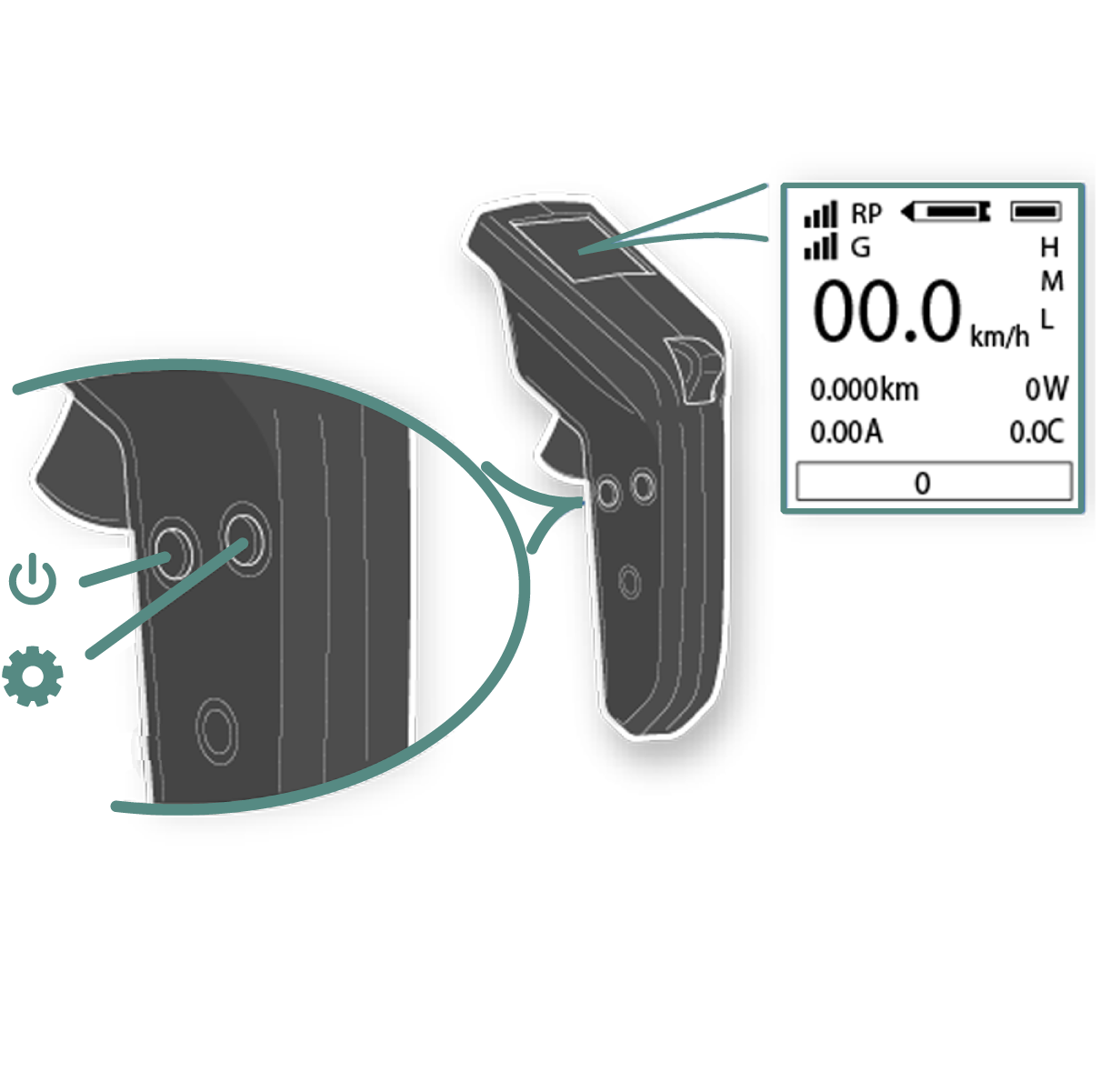

Remote Control
| Icon | Designation |
|---|---|
| 1 | ON/OFF Button |
| 2 | SETUP Button |
| 3 | Acceleration Trigger (Index Finger) |
| 4 | Unlock Trigger (Thumb) |
Description
The Plume remote control allows precise control of the motor power through an analog trigger.
It is recharged wirelessly on a provided base.
Power On
A long press on the ON/OFF button powers on (or off) the remote control.
On startup, the remote control is in "LOCKED" mode. Press the upper trigger (under the thumb) to unlock it "UNLOCKED".
Setup
section to be completed
Remote Control

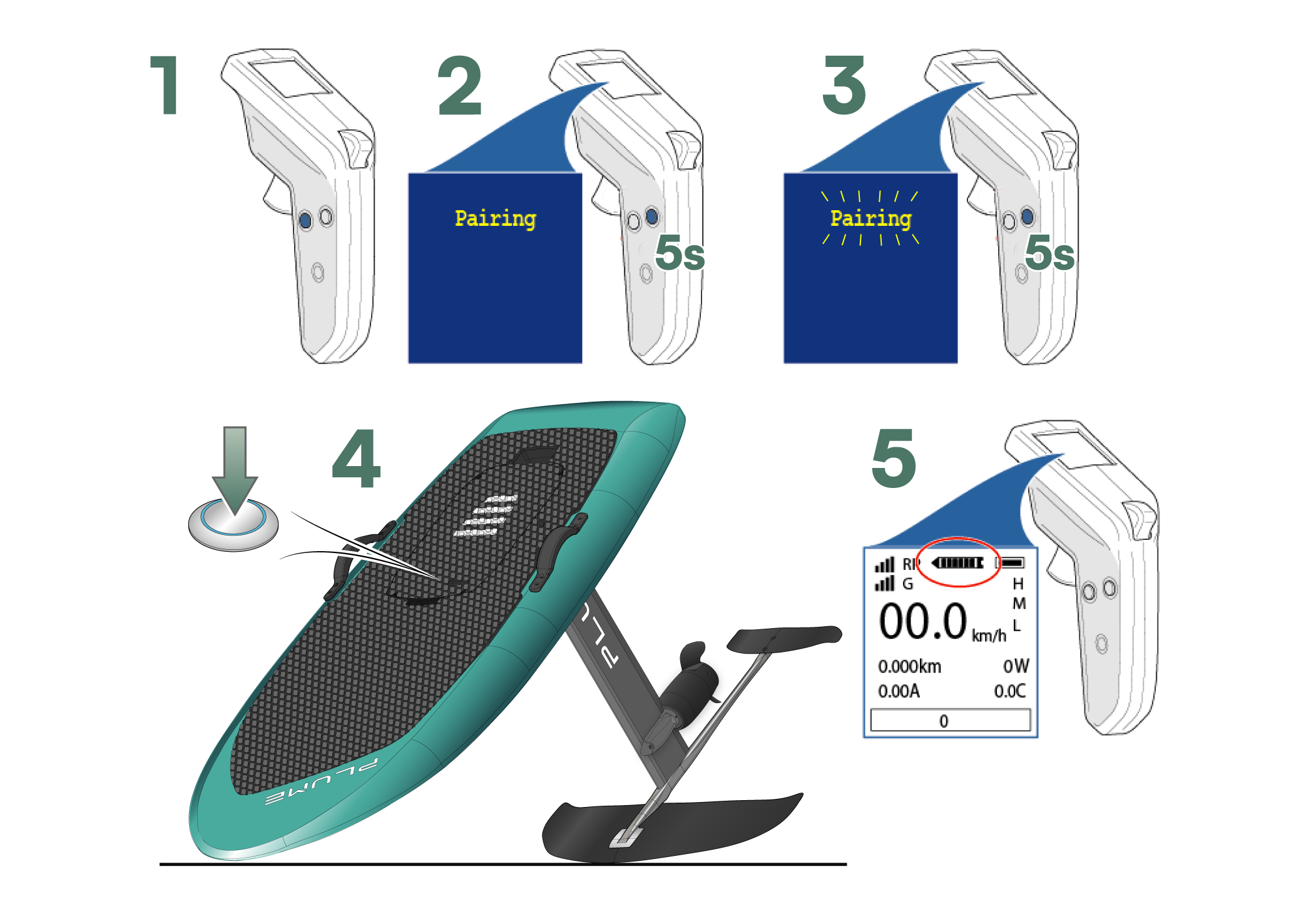

Pairing
The pairing procedure allows configuring the communication between the remote control and the Plume.
If, when turning on your efoil, the motor controller emits beeps and the motor does not spin, it is likely that the communication with the remote control is cut off. Please check the proper connection of the antenna with the mast (under the battery). If the antenna connection is good and the problem persists, please proceed with pairing the remote control.
Initial State
The Plume is assembled, and the power is off (battery button is off)
Turn on the Remote Control
Enter the Configuration Menu
By long-pressing the setup button (next to the ON/OFF button) The pairing configuration is the first page of the setup menu
Activate Pairing
By long-pressing the setup button again The text Pairing starts blinking on the remote control screen
Power On
Using the ON/OFF button on the battery The motor controller confirms successful pairing by emitting a BEEP BEEP sound
Inductive Charging
Plug the Charging Base into a Power Outlet
Using the provided USB charger and cable
Place the turned-off remote control on the charging base
The double ring on the side of the remote control should be positioned in the middle of the base
Charging Begins
- The remote control screen displays the charging level
- The blue ring on the base pulsates to indicate charging
