Never perform assembly or disassembly operations in the sand. The presence of sand grains in the electrical connectors or the motor can cause damage that would not be covered by the warranty.

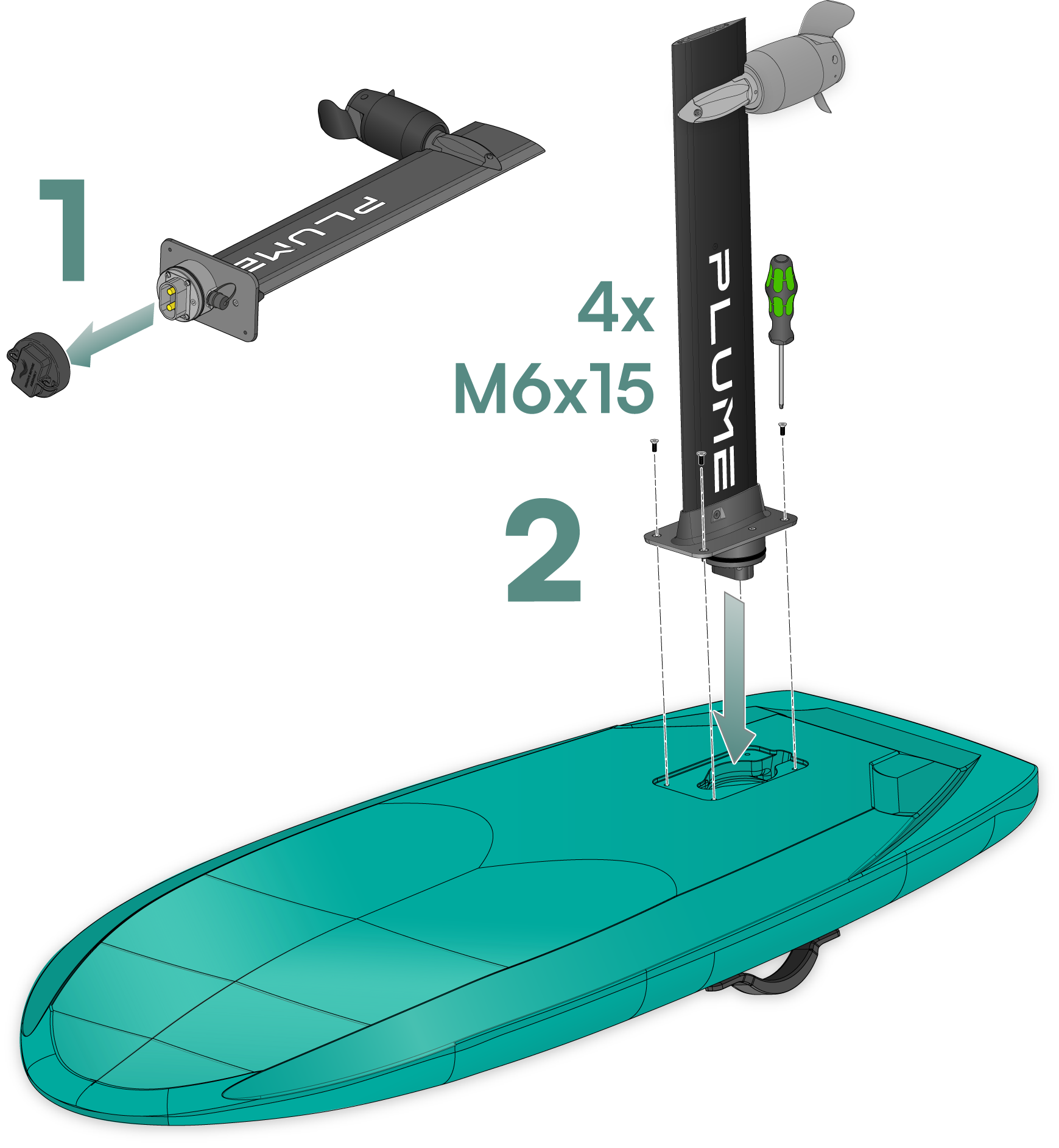

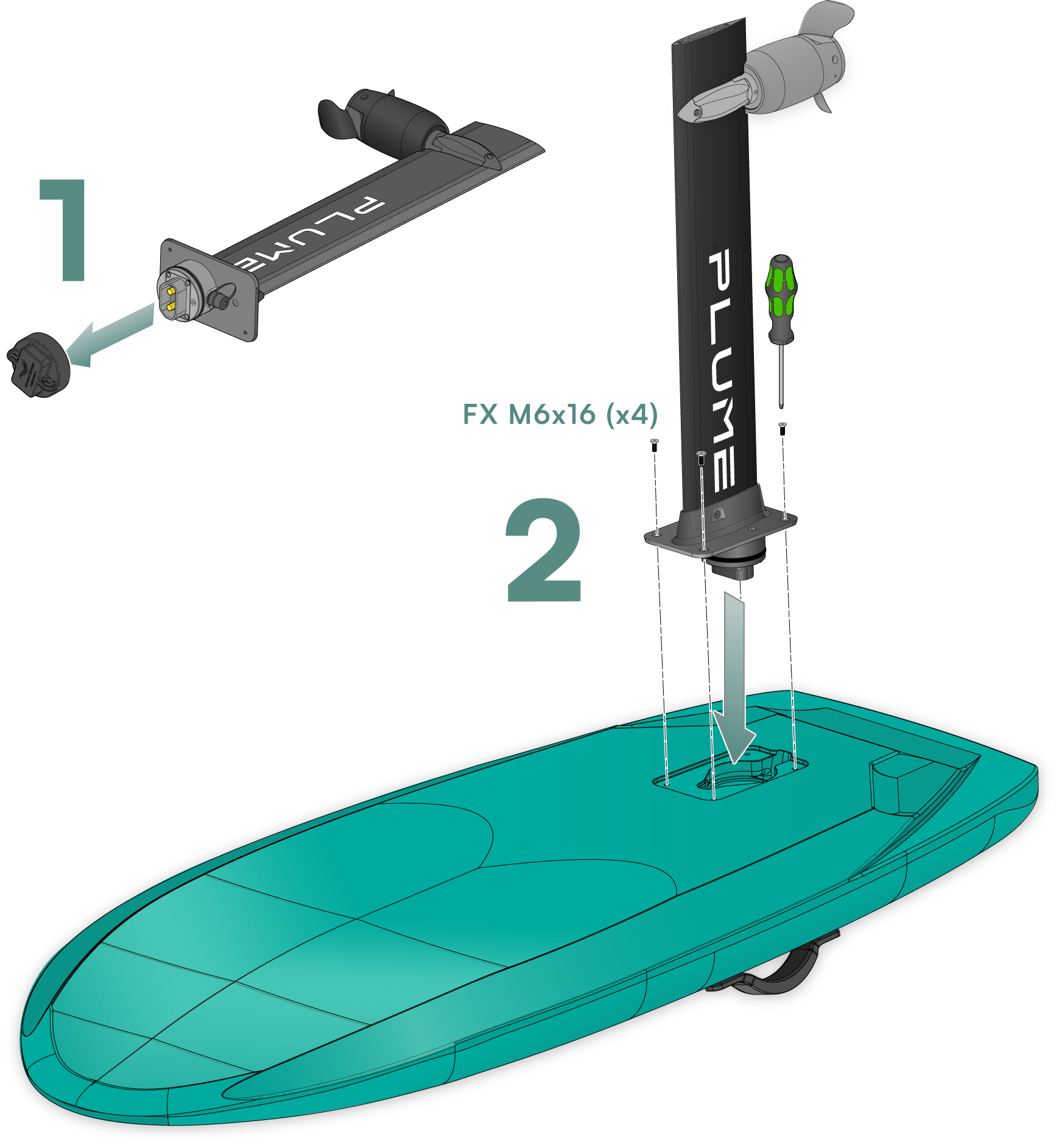

Mount the mast on the board
Mount the stabilizer on the fuselage

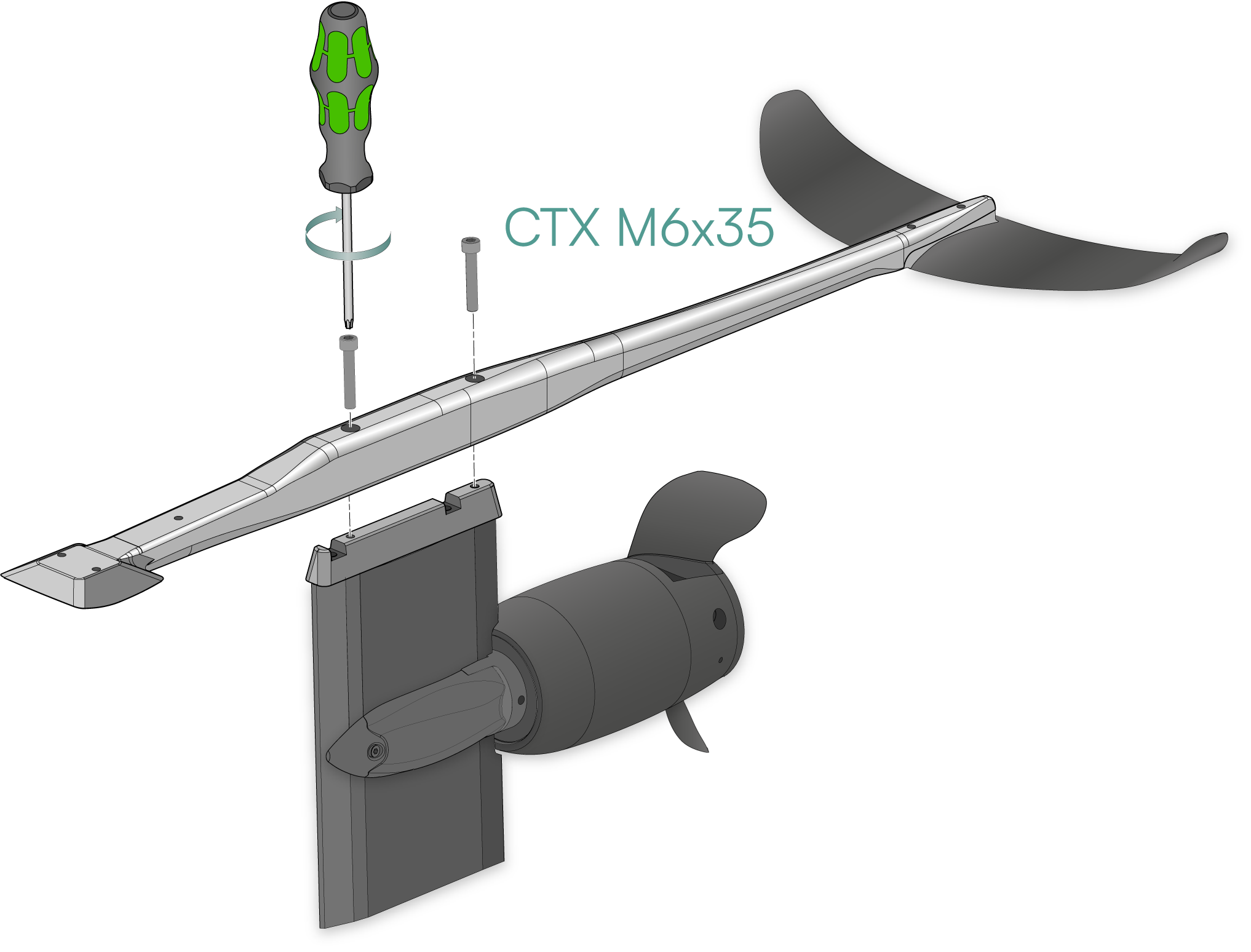

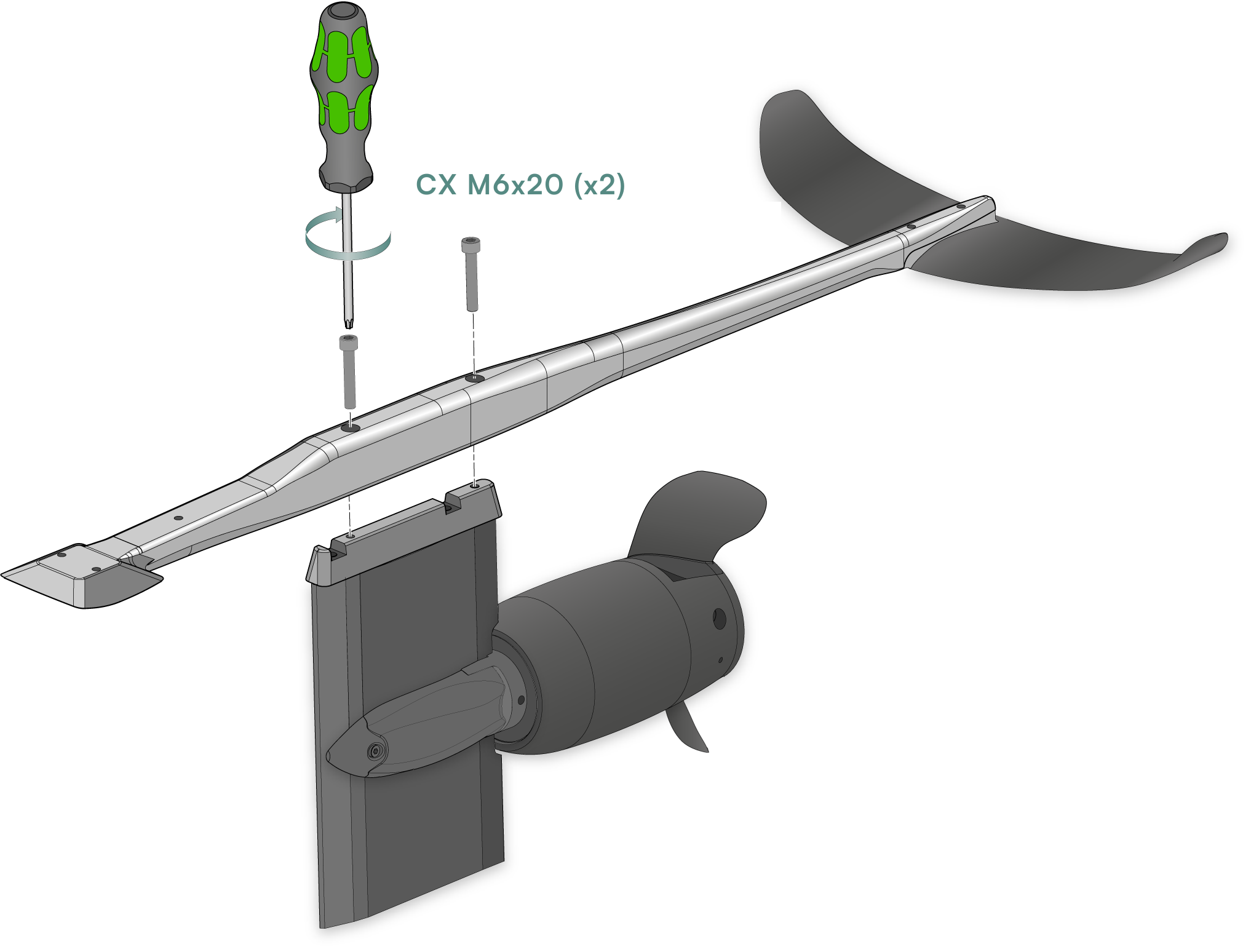

Mount the fuselage on the mast

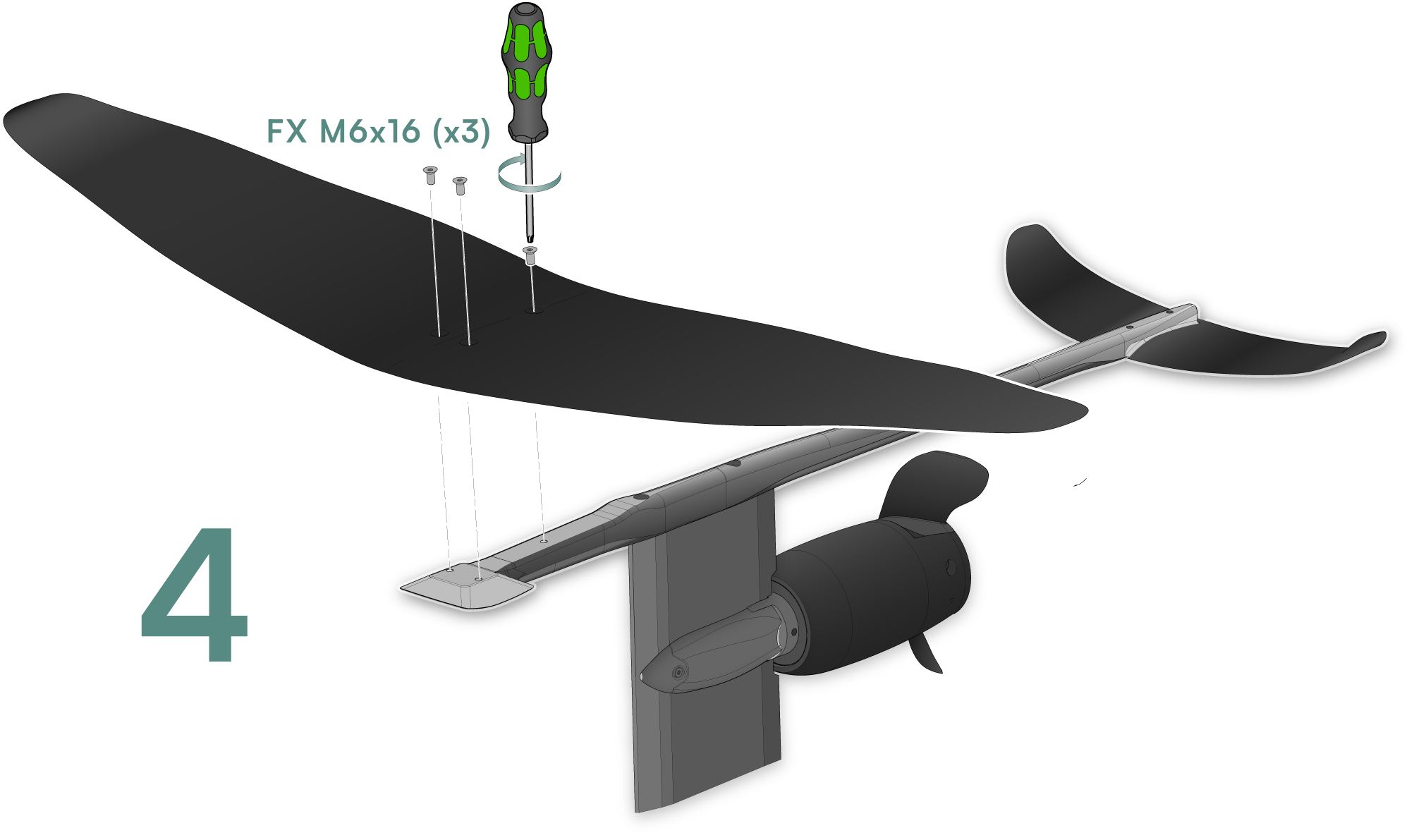

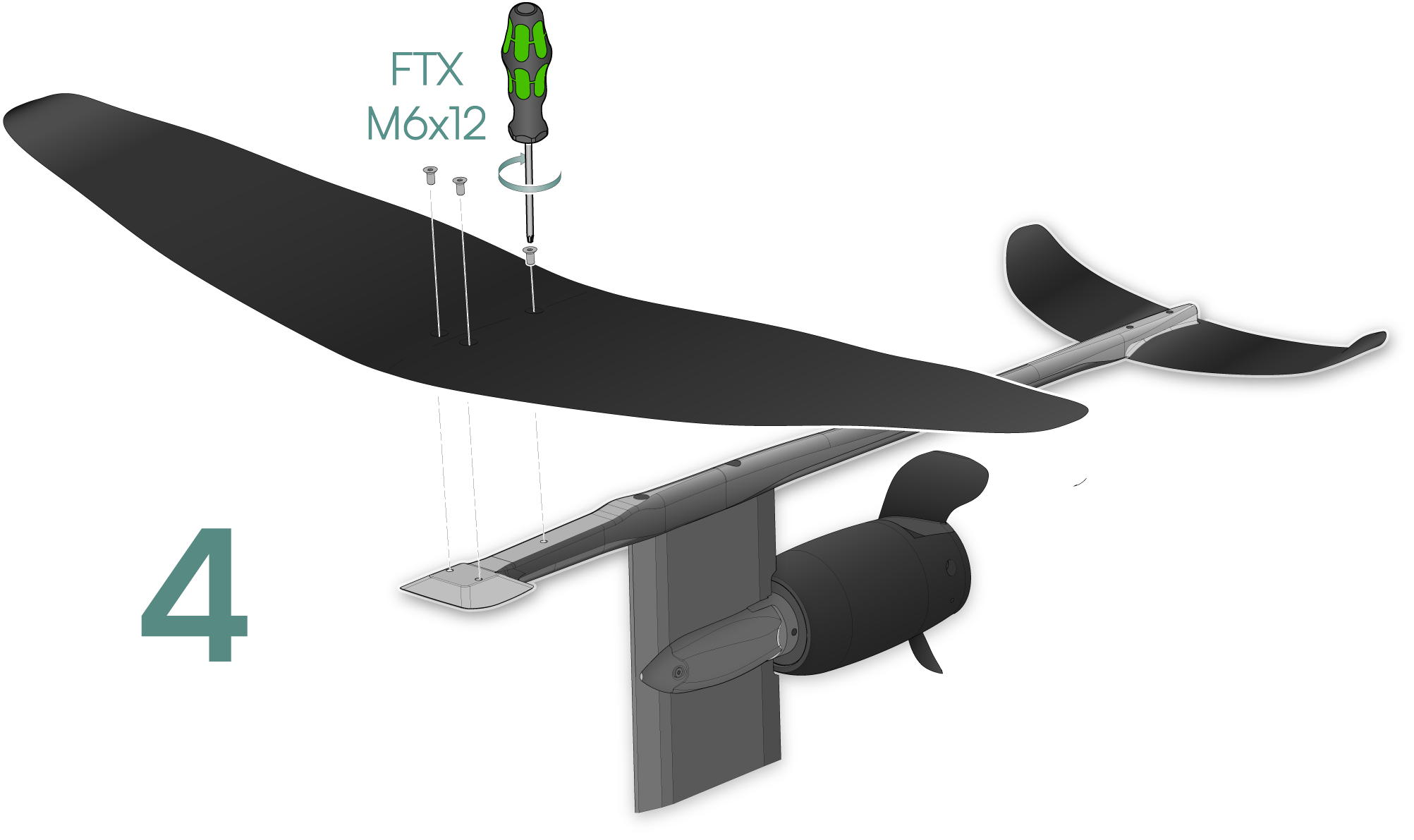

Mount the wing

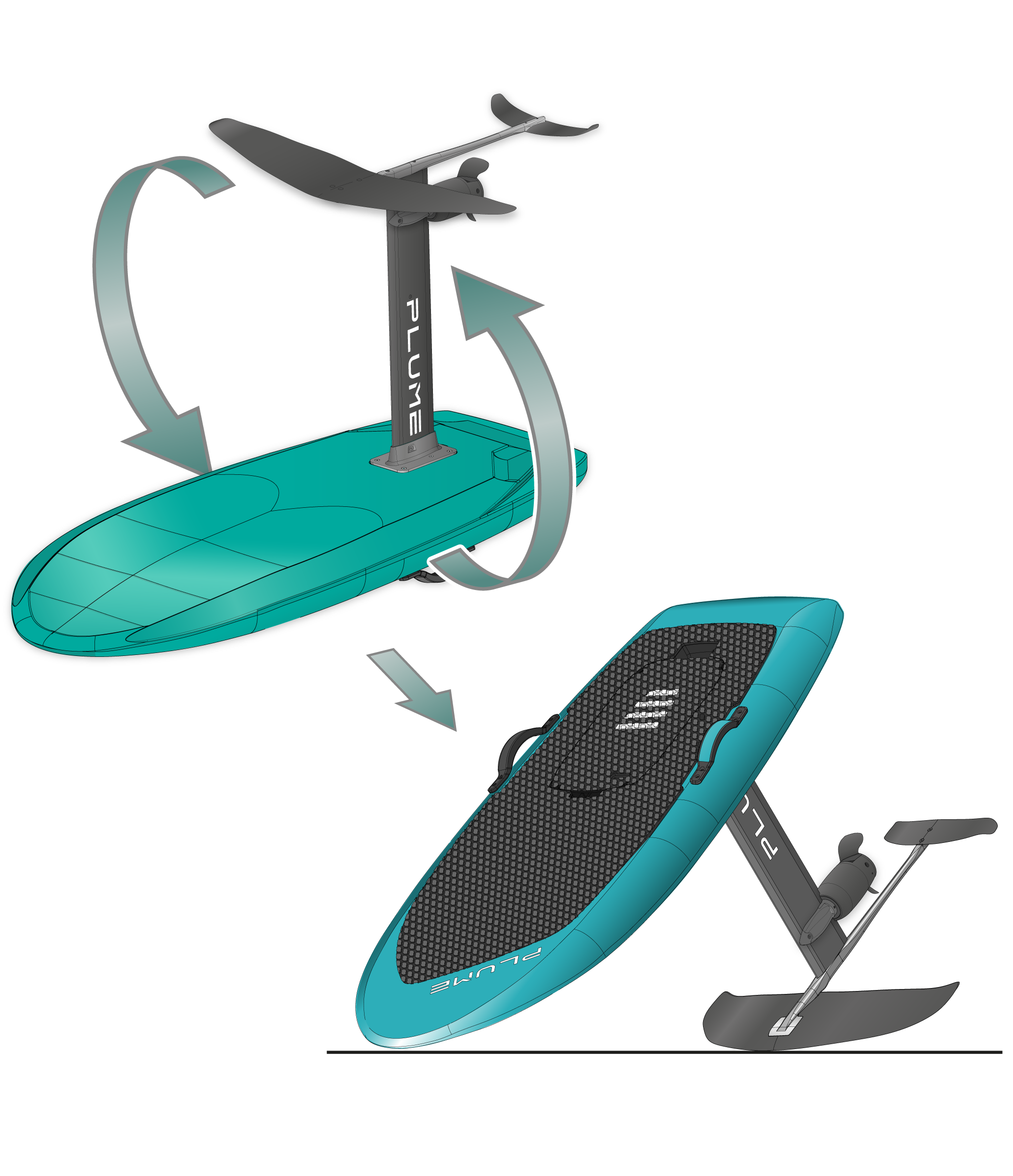

Flip the Plume
Do not lean on the wingtip during flipping.

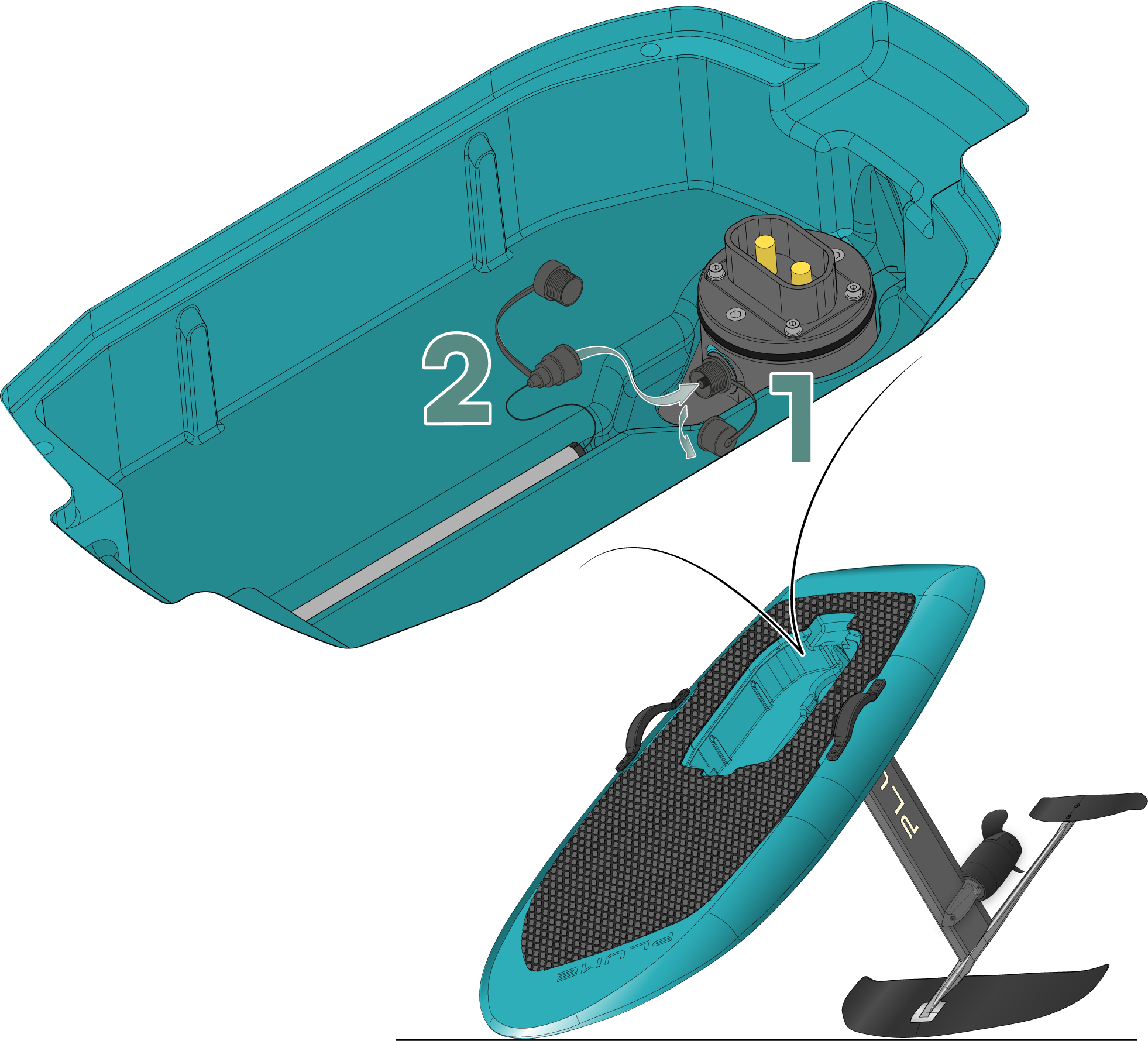

Connect the antenna
You can screw the two antenna connector caps together.
Ensure that the caps remain within the reserved space to avoid obstructing the battery insertion.

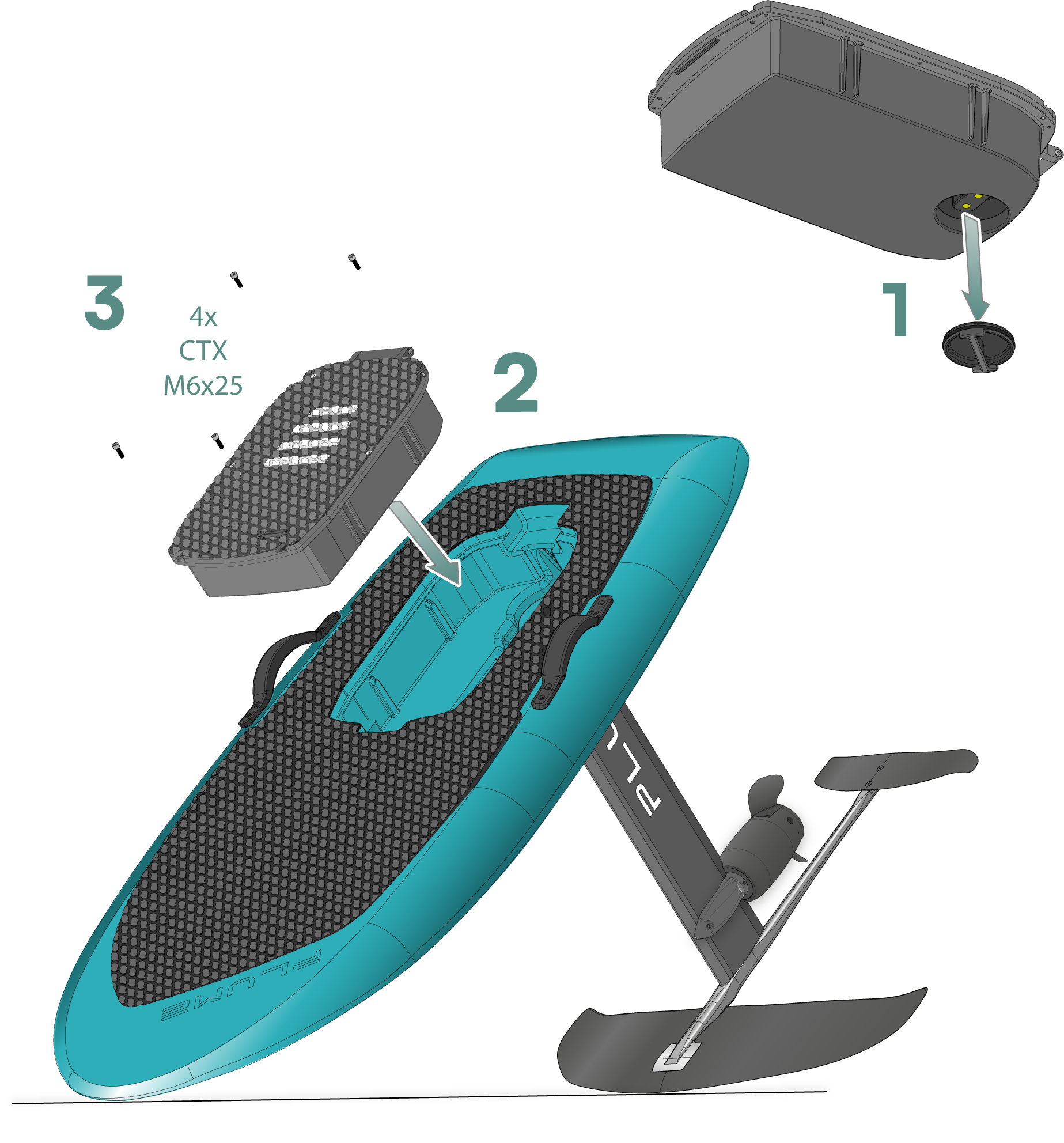

Install the battery
Be sure to hold the battery with both hands (one on the handle and one on the opposite side).
Insert the battery by sliding it along the guide rails, aligned with the mast, without rotating it.
Secure the battery by screwing the 4 battery fixation screws into place (without applying excessive torque).
Power on the remote control
At startup, the remote control is in "LOCKED" mode. Press the upper trigger (under the thumb) to unlock it and switch to "UNLOCKED" mode.
Power on the Plume
The button located under the battery handle is piezoelectric. Activate it with a firm and sharp press.
Check the motor rotation
Beware of propeller rotation
Be cautious when activating the motor, as objects in the path of the propeller can cause damage or injuries.
