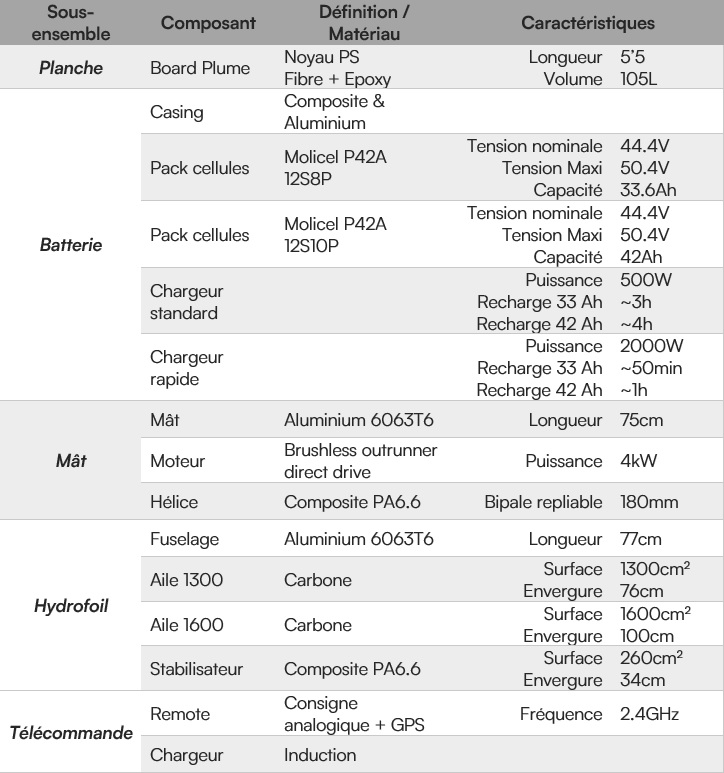

Technical Specifications

Sub-Assembly	Component	Definition / Material	Specifications
Planche	Board Plume	PS core, Glass fiber + Epoxy	Length 5'5, Volume 105L
	Board Swell	PS core, Carbon fiber + Epoxy	Length 5'0, Volume 90L
	Board Nano	XPS core, Carbon fiber + Epoxy	Length 4'6, Volume 70L
	Board Structure	Carbon + HD core
Batterie	Cells pack	Molicel P42A 12S6P	Nominal Voltage 44.4V, Max Voltage 50.4V, Capacity 25.2Ah
	Cells pack	Molicel P42A 12S8P	Nominal Voltage 44.4V, Max Voltage 50.4V, Capacity 33.6Ah
	Cells pack	Molicel P42A 12S10P	Nominal Voltage 44.4V, Max Voltage 50.4V, Capacity 42.0Ah
	Cells pack	Molicel P42A 12S12P	Nominal Voltage 44.4V, Max Voltage 50.4V, Capacity 50.4Ah
Mât	Mast	Aluminum 6063T6	Longueur 75cm
	Motor	Brushless outrunner direct drive	Power 3kW
	Propeller	Aluminum 6063T6	Three blades folding propeller 160mm
	Motor	Brushless outrunner direct drive	Power 4kW
	Propeller	Composite PA6.6	Two blades folding propeller 180mm
	Propeller	Aluminum 6063T6	Two blades folding propeller 180mm
	Motor	Brushless outrunner direct drive	Power 5kW
	Propeller	Aluminum 6063T6	Three blades folding propeller 165mm
Hydrofoil	Fuselage	Aluminum 6063T6	Longueur 77cm
	Wing 900	Carbon	Surface 1300cm², Wingspan 76cm, AR 8.6
	Wing 1100	Carbon	Surface 1300cm², Wingspan 76cm, AR 7.6
	Wing 1300	Carbon	Surface 1300cm², Wingspan 76cm, AR 4.2
	Wing 1600	Carbon	Surface 1600cm², Wingspan 100cm, AR 6.3
	Wing 1900	Carbon	Surface 1600cm², Wingspan 100cm, AR 8.9
	Stabilisator	Composite PA6.6	Surface 260cm², Wingspan 34cm, AR 4.3
	Stabilisator	Carbon	Surface 220cm², Wingspan 32cm, AR 5.5
Chargeur	Standard Charger		Power 500W, Charge 33 Ah ~3h
	Fast Charger		Power 2000W, Charge 33 Ah ~50min
Télécommande	Remote	Consigne analogique + GPS	Frequency 2.4GHz
	Charger	Induction
